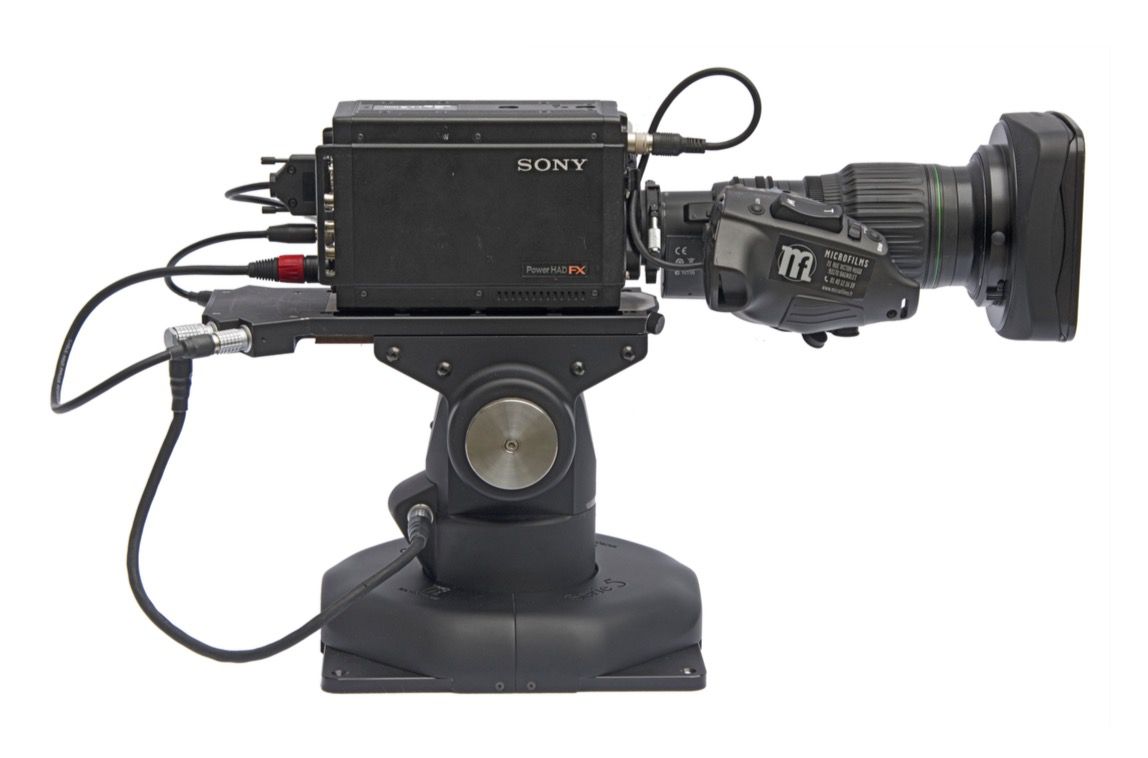

MF Series 5 Smart Head

About the MF Series 5 Smart Head…

The Series 5 Smart Head is a remote operated 2 Axis Head with full broadcast control capability. Its unique design allows it to be the perfect tool for applications where a traditional cradle head is too big.

MF Series 5 Smart Head

Feature Overview

Made for Pro Cameras

Strong Pan and Title motors make it compatible with most Broadcast and Cinema Cameras.

Software Control

Built in software allows complete control of Canon and Fuji Lens Servo Systems, also Preston Follow Focus Kits (MK II).

Precise Control

Input methods include Joystick and Pan bar control.

Cable Compatibility

Control Communication can be handled by POE (100m), BNC (> 150m), or Fibre Link

Daisy Chain

Operation of multiple units on one controller.

Jimmy Jib Lengths

Reach Capacity Height 90° Swing | 180° Swing | 360° Swing
Junior 3ft (0.9m) 45.3 kgs 9ft (2.7m) 10’ x 10’ (3m x 3m)
Standard 6ft (1.8m) 29.4 kgs 13ft (3.9m) 10’ x 10’ (3m x 3m)
Standard Plus 9ft (2.7m) 27.2 kgs 16ft (4.8m) 10’ x 10’ (3m x 3m)
Giant 12ft (3.8m) 22.6 kgs 19ft (5.7m) 10’ x 10’ (3m x 3m)
Giant Plus 15ft (4.5m) 22.6 kgs 23ft (7m) 15’ x 15’ (4.6m x 4.6m)
Super 18ft (5.4m) 22.6 kgs 25ft (7.6m) 15’ x 15’ (4.6m x 4.6m)
Super Plus 24ft (7.3m) 22.6 kgs 30ft (9.1m) 15’ x 15’ (4.6m x 4.6m)
Extreme 30ft (9.1m) 22.6 kgs 35ft (10.6m) 20’ x 20’ (6.1m x 6.1m)
